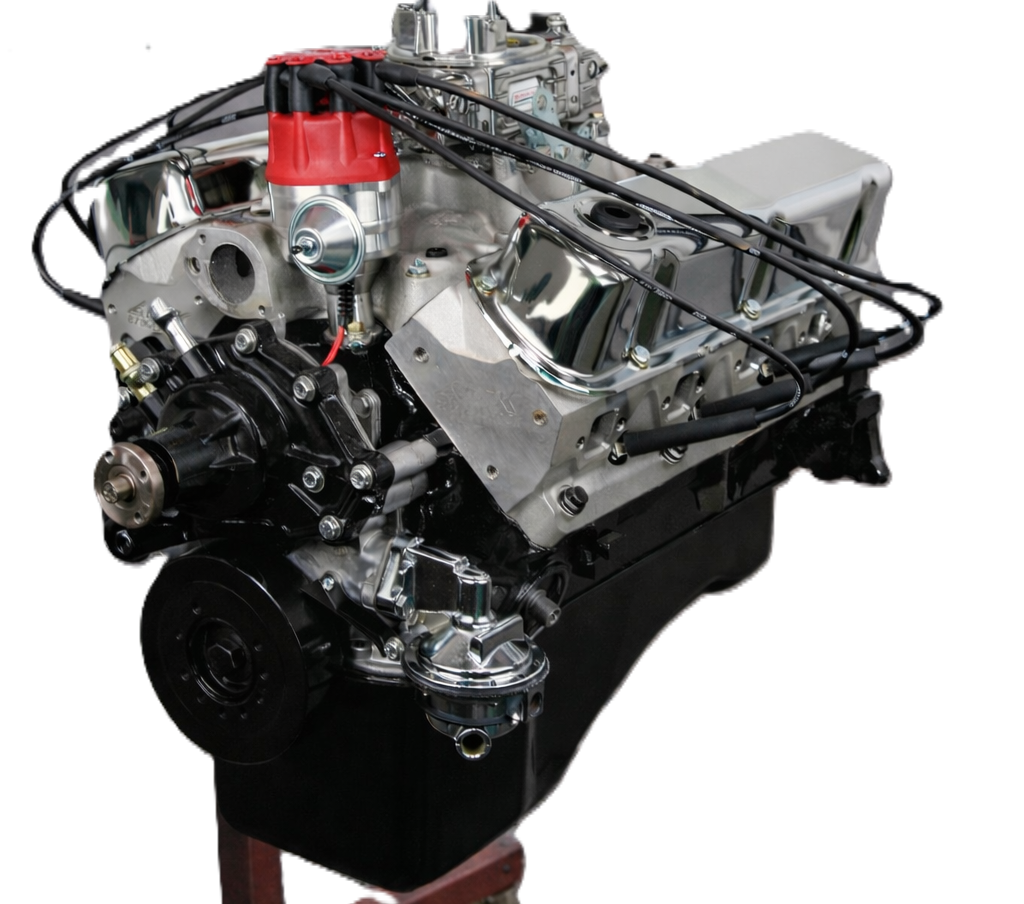

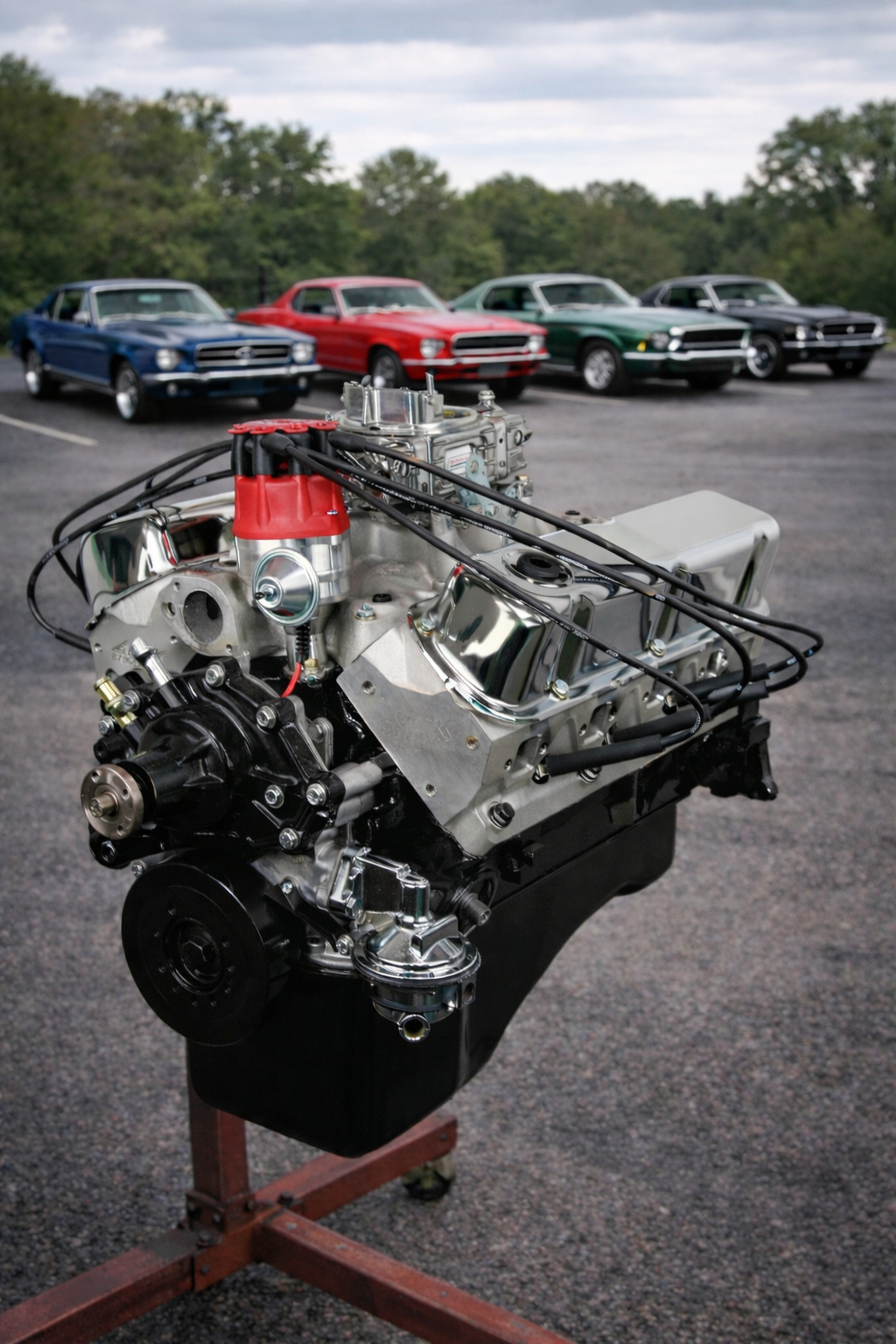

Ford 347: torque-forward small-block power.
Built around a seasoned OE roller block with forged internals and a street-friendly hydraulic roller cam. Strong torque, clean drivability, and a combo designed to work.
347 is the “street torque” choice — more shove than a 302, still small-block packaging.
Read why 347 →Everything important is listed: block, bore/stroke, heads, cam, carb, balance, and supporting parts.
View build spec →Converter, timing, octane, and exhaust all matter. We’ll help confirm your full setup.
Confirm fitment →
Shop the GOAT 347
View the full product page for complete details — or buy now and check out.
At a glance
A quick scan before you dive deeper.
Build specification
Open what you care about — everything is kept clean and scannable.
Engine specifications (HP/TQ + hard parts)
- HP: 415
- TQ: 430
- Block: Seasoned OE Roller Block 1987–1995
- Bore/Stroke: 4.040 x 3.400
- Displacement: 347CI
- Crankshaft: Scat nodular iron external balance 28oz
- Rods: Scat 4340 forged I-beam with ARP 8740 bolts
- Pistons: Forged 10:1 compression
- Rings: Moly
- Camshaft: Hyd. Roller
- Cam Specs: 220/224 @50 .512in/.512ex 112LSA
- Timing Chain: Double roller
- Cylinder Heads: Dart aluminum 58cc/170cc 2.02/1.60
- Rocker Arms: Aluminum 1.6 roller rockers
- Oil Pan: Fox Body (Mustang Dual Sump)
- Oil Pump: Melling high volume
- Balancer: External balance 28oz (with Scat kit)
- Flexplate/Flywheel: External balance 28oz 164 tooth (with Scat kit)
- Intake Manifold: Edelbrock Performer RPM #7121
- Carburetor: Quick Fuel 680 CFM vacuum secondaries, electric choke #HR-680cfm
- Fuel Pump: Mechanical fuel pump
- Distributor: Pro billet (upgraded melonite gear)
- Spark Plugs: Autolite #3923
- Spark Plug Wires: MSD 8mm #5541
- Water Pump: OE reverse rotation LH inlet
Engine info (oil, timing, firing order, converter, exhaust)
- Oil: Conventional / Non-Synthetic 10W30
- Oil Filter: Wix or K&N
- Timing: 34–36 Degrees
- Spark Plug Gap: .035”
- Firing Order: 13726548
- Octane: 91+
- Stall Converter: 2400–2800
- Exhaust: 1 5/8
Warranty
Why a 347?
A 347 stroker is the sweet spot when you want a small-block Ford to feel stronger everywhere — especially midrange torque — without jumping to a physically larger platform.
The “right” reason to pick a 347
- You want a noticeable torque increase vs a 302, especially through the midrange.
- You want street-friendly drivability with a hydraulic roller cam setup.
- You’re building a Mustang / Fox-body style combo where converter + gearing are part of the plan.
When you might prefer a different Ford engine
- 302: classic baseline power and easy street manners.
- 351W: more cubic inches and broader torque feel.
- 408 / 427 stroker: when you want big torque presence and aggressive pull.
Ford 347 FAQ
Fast answers that keep customers moving.
What fuel does this 347 require?
What stall converter should I run?
Is this engine externally balanced?
What timing and plug gap should I start with?
What firing order does it use?
What warranty is included?
Explore other Ford crate engines
If the 347 isn’t the perfect fit, here are the next most common directions.
