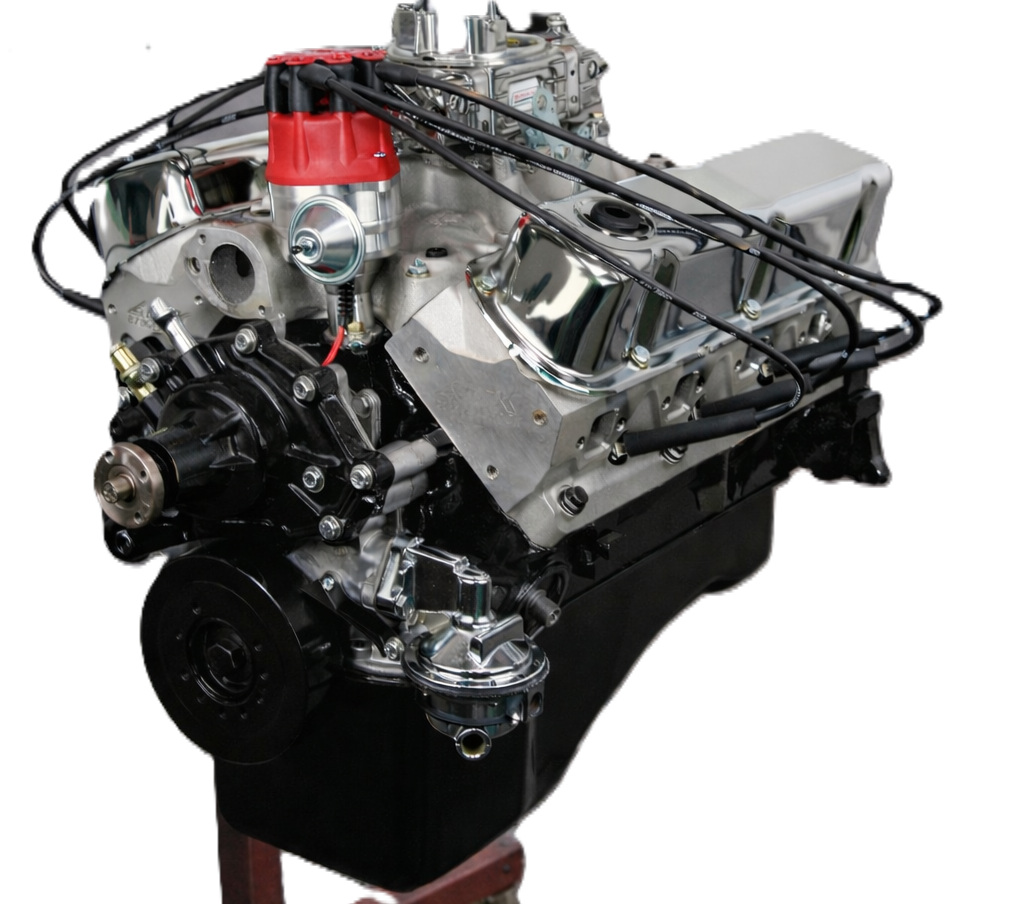

THE GOAT Ford 347 Crate Engine

THE GOAT Ford 347 is the “street torque” small-block choice when you want your Ford to feel stronger everywhere—especially through the midrange—while keeping classic small-block packaging.

Built around a seasoned 1987–1995 OE roller block, it combines forged internals, a hydraulic roller cam, and a matched supporting combo (balance, fuel, ignition, oiling) designed to drive clean and hit hard in real street RPM.

At-a-glance (why this combo works)

• 415 HP / 430 TQ tuned for the street RPM range with a clean hydraulic roller setup

• 28oz external balance with matched balancer + flexplate/flywheel

• Supporting parts selected as a system (oiling, ignition, fuel, and drivability notes)

• Warranty included: one year, unlimited mileage written warranty


Why a 347?

• Noticeable torque increase vs a 302, especially through the midrange

• Street-friendly drivability with a hydraulic roller cam setup

• Ideal for Mustang / Fox-body style combos where gearing + converter matter

• HP / TQ: 415 / 430

• Block: Seasoned OE Roller Block (1987–1995)

• Bore/Stroke: 4.040 x 3.400

• Displacement: 347CI

• Crankshaft: Scat nodular iron, external balance 28oz

• Rods: Scat 4340 forged I-beam w/ ARP 8740 bolts

• Pistons: Forged, 10:1 compression

• Rings: Moly

• Camshaft: Hydraulic roller — 220/224 @ .050, .512/.512, 112 LSA

• Timing chain: Double roller

• Cylinder heads: Dart aluminum 58cc/170cc, 2.02/1.60

• Rocker arms: Aluminum 1.6 roller rockers

• Oil pan: Fox Body (Mustang dual sump)

• Oil pump: Melling high volume

• Balancer: External balance 28oz (with Scat kit)

•
  Flexplate/Flywheel: External balance 28oz, 164 tooth (with Scat kit)

• Intake manifold: Edelbrock Performer RPM #7121

• Carburetor: Quick Fuel 680 CFM (vacuum secondaries, electric choke) #HR-680cfm

• Fuel pump: Mechanical

• Distributor: Pro billet (upgraded melonite gear)

• Spark plugs: Autolite #3923

• Spark plug wires: MSD 8mm #5541

• Water pump: OE reverse rotation, LH inlet


Includes one year, unlimited mileage written warranty built for real street miles, not just dyno numbers.

• This engine is 28oz externally balanced — run the matched 28oz balancer and 28oz 164-tooth flexplate/flywheel as listed.

• Fuel: Designed for 91+ octane.

• Converter recommendation: 2400–2800 stall helps the combo feel “right.”

• Oil: Conventional / non-synthetic 10W30; filter: Wix or K&N.

• Timing: Start at 34–36° total; plug gap .035”.

• Firing order: 13726548.

• Exhaust guidance: 1 5/8”.

• Water pump: OE reverse rotation, LH inlet (confirm cooling/accessory routing compatibility).
